IMS Ridged Filter Basket (58mm) – 16/20g (B702TH26.5M)

IMS Ridged Filter Basket (58mm) – 16/20g (B702TH26.5M)

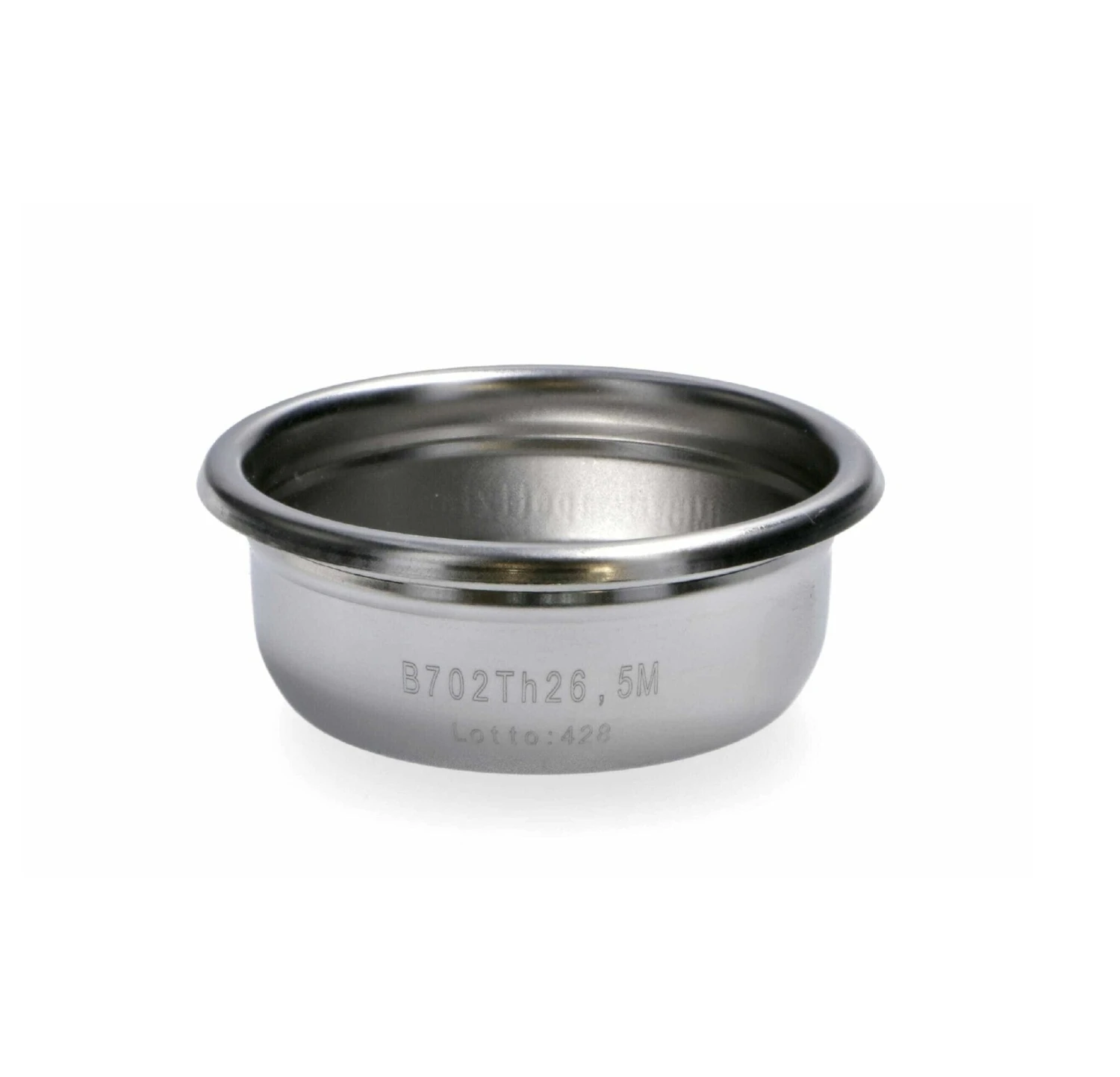

This is an IMS precision filter basket for a 58mm tamper. This basket is cylindrical with a convex base, and height of 26.5mm. Average capacity is 16 – 20g.

The filter shape with a rounded internal corner concentrates extraction towards the centre of the coffee puck, avoiding those sections where the ground coffee is not well exploited during the extraction process. This is combined with an M type of perforation that has a greater concentration of holes in a restricted area.

Compatible with Ascaso, Astoria, Bezzera, Bfc, Bianchi, Brasilia, Brugnetti, Conti, D.I.D, L’Orchestrale,  E61 standard, ECM, Elektra, Expobar, Faema, Fiorenzato, Fracino, Grimac, Kees Van Der Westen, La Marzocco, La Nuova Era, La Pavoni, La Scala, Londinium, Magister, Nuova Simonelli, Promac, Quality Espresso, Rancilio, Rocket, Royal First, SAB, Sanremo, Slayer, SV, Synesso, VFA, Vibiemme, Victoria Arduino and Wega machines

Round holes with conical section, stainless steel, food safe certified matching tamper ø 58.5mm.

B702TH26.5M

Border: 70mm (B70)
Dose: 2 cups (2T = 2 Tazza)
Height: 26.5mm (H26.5)
Capacity: 16/18gr
Body: ø 60mm for ø 58/58.4mm tamper
Ridge: external ø 60.5 mm

Number of holes: 641 M pattern in Ø 44 mm

Hole Diameter: 0.30mm
Shape of the hole: Circular with Conical cross section.
Competition Perforation: Relaminated and Recalibrated.
