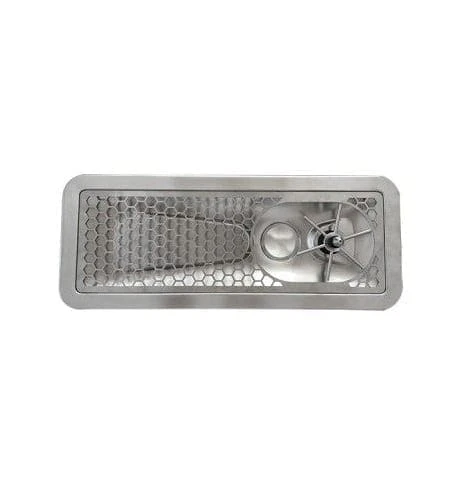

Rhinowares Coffee Gear Recessed Pitcher Rinser (600 X 238 X 85mm)…

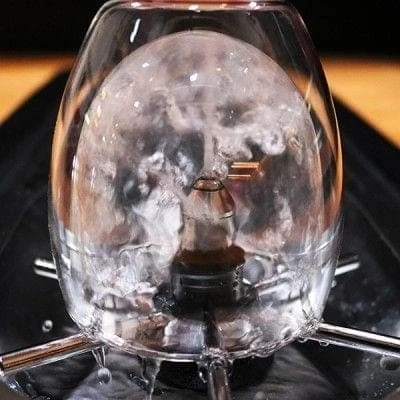

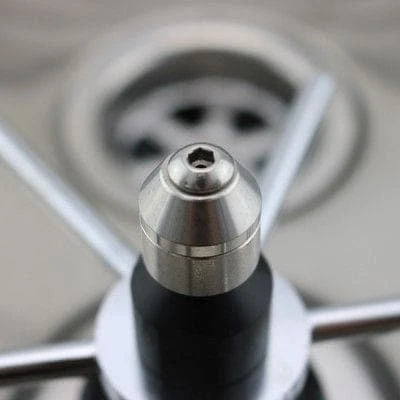

EFFECTIVE MECHANICAL CLEANING

The Spinjet Valve sprays and spins at the same time creating a more robust mechanical cleaning action than regular rinsing valves. It is ideal for plungers using tea leaves, stubborn coffee grounds, and milk and other residues that can often be difficult to clean.

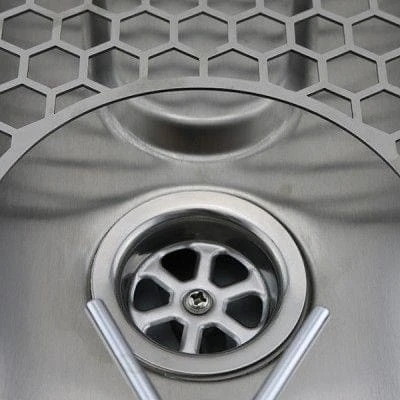

SUPERIOR DRAINAGE

The honeycomb grate design minimises the surface area of the drain tray, reducing static build-up of liquids and making cleaning easy. The low profile body is optimally sloped and angled to ensure effective removal of liquids, reducing common odours caused from static waste. A large drain outlet and wide grate-free opening near the drain creates a convenient location to quickly discard larger volumes of liquid.

There’s a full 2 inch drain outlet for faster drainage. Will keep up with peak demand.

LOW PROFILE

Our low profile body is the thinnest on the market. This means you can still fit appliances under the rinser, not possible with other bucket style rinsers. Our body is sloped towards the drain, meaning faster and more effective draining of liquid. A big problem with warm milk which tends to stick.

LARGE DRAIN OUTLET



LARGER VESSEL OPTIONS

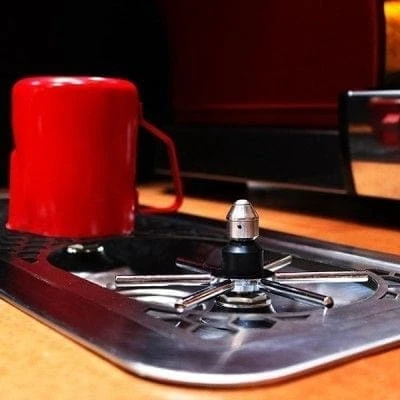

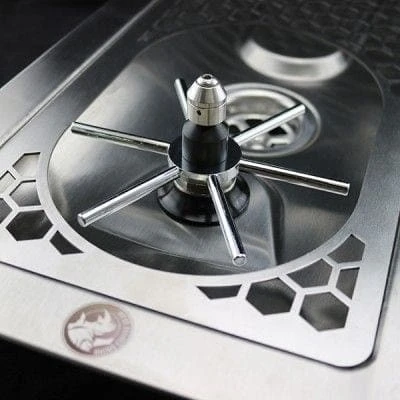

The Actuator Star diameter allows both small and larger vessels to be cleaned easily.

Currently unavailable: An ideal add-on for blender jugs and other larger vessels is the Blender Adapter Kit. This kit includes an extension rod and a larger actuator to suit plungers,
milkshake cups, and popular blender jugs such as Blendtec and Vitamix.

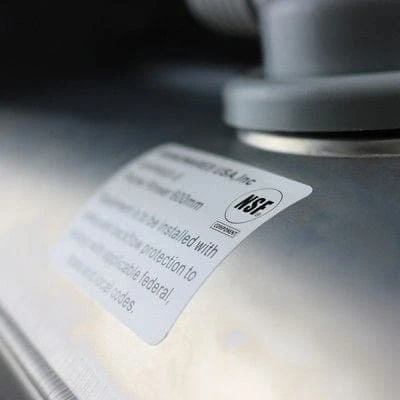

Certifications:

– NSF Certified – All Rhino Milk Pitcher Rinsers are NSF Certified.
– CalGreen Compliant
– Massachusetts State Plumbing Board approved

Rhino Install Guide

Depth Requirements:

The Rhino rinsers are 40mm deep, however, this is without fittings. We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.

Installation Notes:
– Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical pitcher rinser on hand prior to cutting into bench top surfaces. Rhino Coffee Gear nor Shopcoffee do not take responsibility for installation cut out error. The provided sizes and dimensions are to be used as a layout guide only.
– It is recommended that a Pressure Limiting Valve (PLV, also known as a Pressure Restricting Valve or Water Pressure Regulator) is used when installing on mains water line.

Installation bits you will require:

• 2 meters of John Guest Tubing, 3/8″ Blue
• 1 x John Guest Female Adaptor 3/8 PF x 3/4 F BSP (Flat Face Seal) – For washing machine style taps.
• 1 x John Guest Female Tap Adaptor 3/8 PF x 1/2 BSP Female – For standard tap fittings
• 1 x John Guest Shut Off Valve 3/8 PF x 3/8 PF
• 1 x Waste Hose 1.5 Metre
• 1 x Waste Hose clamp

You can purchase these here. Rhino Pitcher Rinser Install Kit
