Rhinowares Square Pitcher Rinser (150mm)

• The Spinjet Valve sprays and spins at the same time creating a more robust mechanical cleaning action than regular rinsing valves. It is ideal for plungers using tea leaves, stubborn coffee grounds, milk and other residues that can often be difficult to clean.
• Compact design is perfect for smaller bench spaces.
• Easy installation.

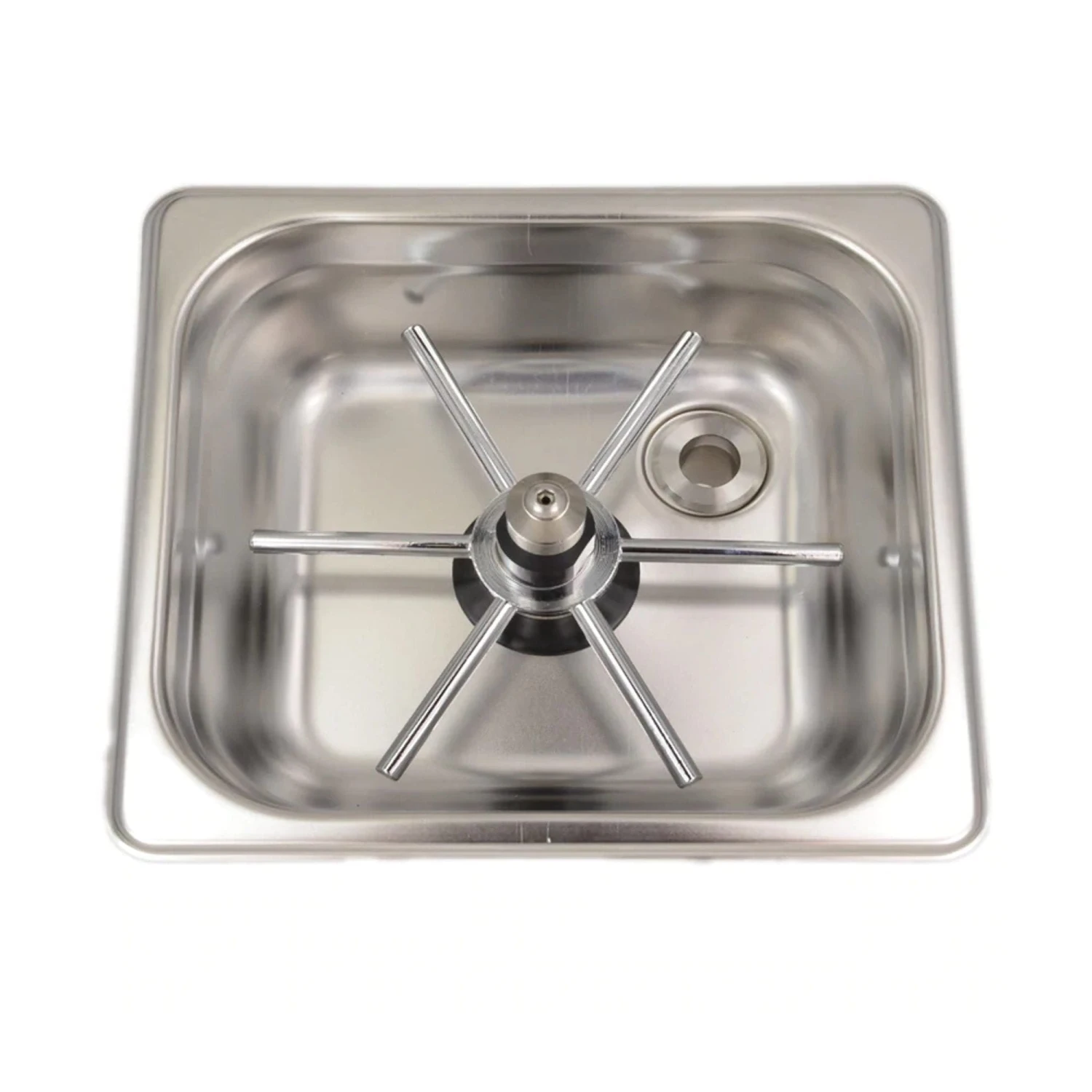

• Actuator Star design helps to prevent the build-up of milk residue and is easy to clean.
• 304 Stainless Steel construction.
• No sharp edges; corners are rounded for safety.
• NSF Certified

Dimensions (W x L x D): 175 x 159 x 62 mm approx.
Depth with fittings: 110mm

We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.

• 1 x Sink
• 1 x Spinjet Spray Mechanism with Actuator Star

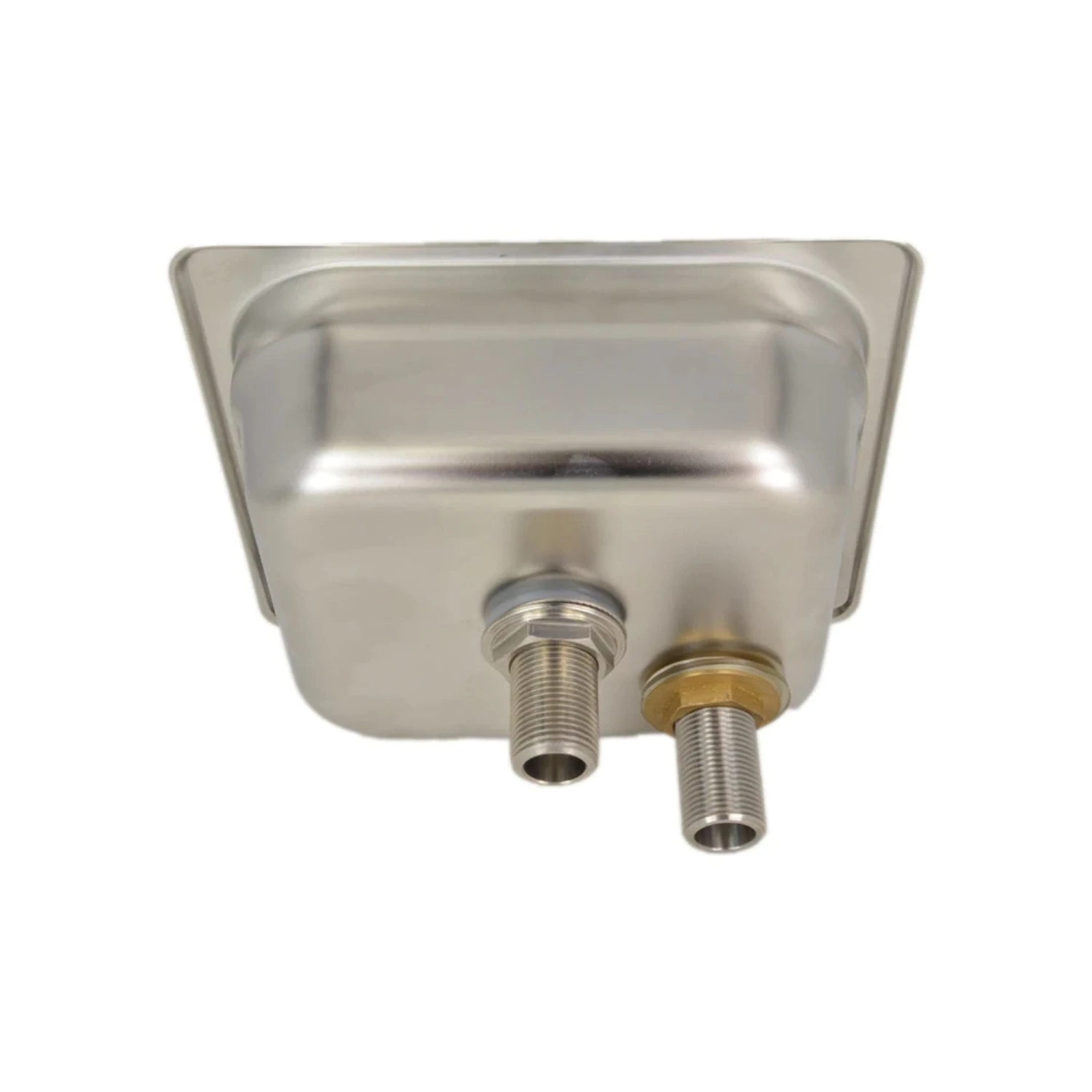

• 1 x John Guest Hose Adapter
• 1 x Drain Outlet

– Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical pitcher rinser on hand prior to cutting into benchtop surfaces. Bombora does not take responsibility for installation cut-out errors and provides the sizes and dimensions as a layout guide only.
– It is recommended that a Pressure Limiting Valve (PLV – also known as a Pressure Restricting Valve or Water Pressure Regulator) is used when installing on the mains water line.

Video guides:

• Rhino Vessel Rinser – Fixing the o-ring on the Activation Piston
• How to change the piston on Rhino Vessel Rinsers
• How to replace the seals on the Rhino vessel rinser piston

Rhino Coffee Gear Cleaning Instructions
Rhino Coffee Gear Spinjet Mechanism Exploded View
Rhino Pitcher Rinsers Spec Sheet
Rhino RHPR150-S Installation Instructions
RHPR150-S Bench Cut Template
